400 cummins engine stand plans???

Posted By Chris Monday, November 14, 2011 1:46 PM
Add to Favorites5
Author Message
Miguel
 Posted Wednesday, June 15, 2016 4:22 PM
.

. - (732 reputation). - (732 reputation). - (732 reputation). - (732 reputation). - (732 reputation). - (732 reputation). - (732 reputation). - (732 reputation). - (732 reputation)

Group: Forum User
Last Active: Wednesday, June 15, 2016 4:18 PM
Posts: 2, Visits: 1
732
Wanna sell it ?
Miguel
 Posted Wednesday, June 15, 2016 4:20 PM
.

. - (732 reputation). - (732 reputation). - (732 reputation). - (732 reputation). - (732 reputation). - (732 reputation). - (732 reputation). - (732 reputation). - (732 reputation)

Group: Forum User
Last Active: Wednesday, June 15, 2016 4:18 PM
Posts: 2, Visits: 1
732
Where are you located? I am in Tx.
Aaron
 Posted Wednesday, November 16, 2011 5:11 PM
ATHS Member

ATHS Member - (130,144 reputation)ATHS Member - (130,144 reputation)ATHS Member - (130,144 reputation)ATHS Member - (130,144 reputation)ATHS Member - (130,144 reputation)ATHS Member - (130,144 reputation)ATHS Member - (130,144 reputation)ATHS Member - (130,144 reputation)ATHS Member - (130,144 reputation)

Group: Forum User
Last Active: Thursday, March 12, 2020 4:02 AM
Posts: 2,617, Visits: 5,385
John, thats the one I was talking about.
 I believe someone even with limited skills at reading a tape measure could build a stand like that with the measurements and a picture.


I can't get anymore out of it, I've got both sticks hot clear up to the knobs allready.
www.killcarb.org
RedKevin47
 Posted Wednesday, November 16, 2011 6:18 AM
ATHS Member

ATHS Member - (9,529 reputation)ATHS Member - (9,529 reputation)ATHS Member - (9,529 reputation)ATHS Member - (9,529 reputation)ATHS Member - (9,529 reputation)ATHS Member - (9,529 reputation)ATHS Member - (9,529 reputation)ATHS Member - (9,529 reputation)ATHS Member - (9,529 reputation)

Group: Forum User
Last Active: Tuesday, January 07, 2014 11:32 PM
Posts: 51, Visits: 372
Beautiful welds. The fab pictures give me some ideas for a trailer project I have going.


My truck: 1973 pumper fire truck w/855 Cummins NTF in FWD/Duplex FF2-038
farmersamm
 Posted Wednesday, November 16, 2011 4:24 AM
.

. - (6,171 reputation). - (6,171 reputation). - (6,171 reputation). - (6,171 reputation). - (6,171 reputation). - (6,171 reputation). - (6,171 reputation). - (6,171 reputation). - (6,171 reputation)

Group: Awaiting Activation
Last Active: Saturday, April 27, 2013 8:57 AM
Posts: 78, Visits: 77
Unless you have the capacity to build to exact tolerances, it's impossible to make a stand from plans or measurements.

Instead, you want to build out from the engine itself.

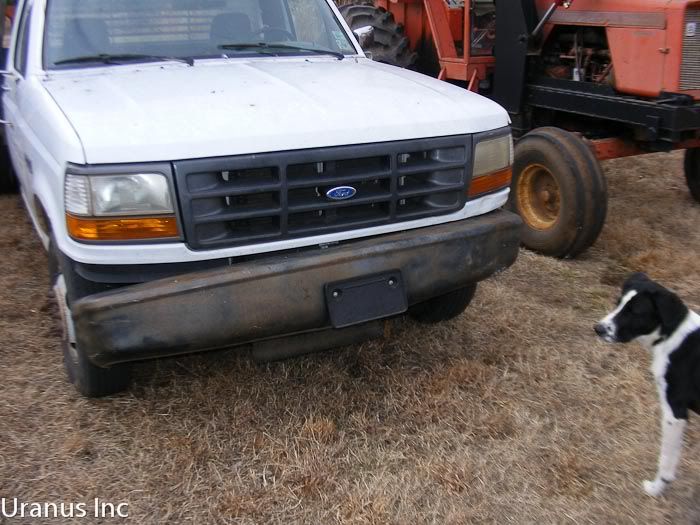

Picked up this 1 ton a few years back for a song.  It had some front end damage, but not severe.  The bumper was toast, and not suitable for the way I operate a truck.  I need to be able to pull it out of the mud, and also utilize a tow bar if needed.

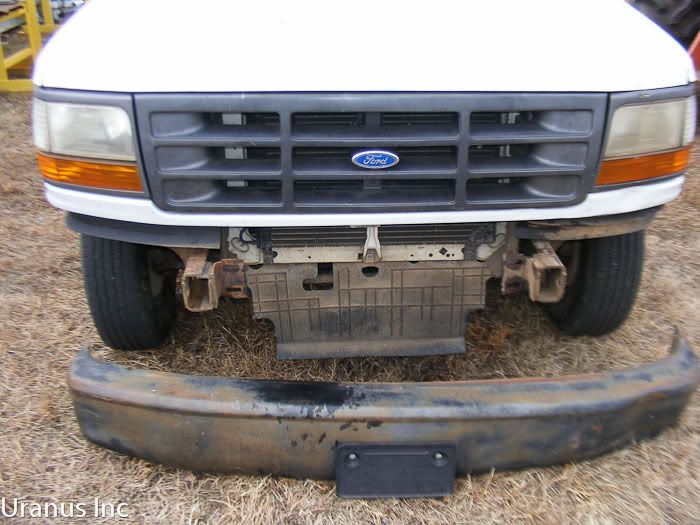

Dropped the bumper.

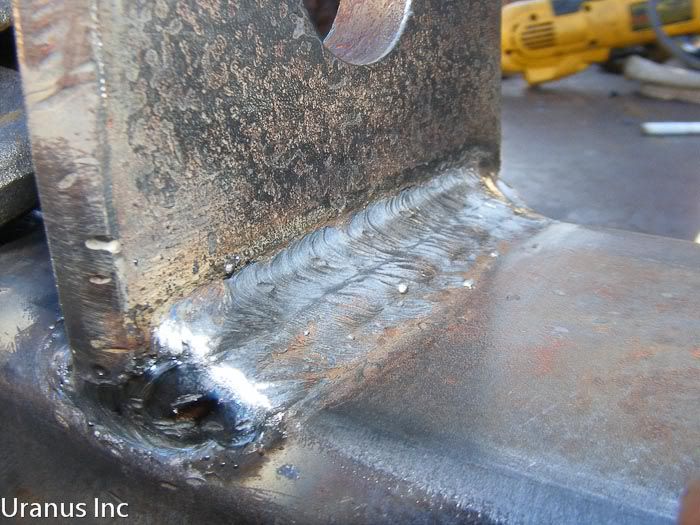

Then fabricated the new brackets, and attached them to the frame.  Note that the front of the brackets are unfinished.  This is to allow for fitup later in the process.  This is "building out" , ie. working from a known position (the frame of the truck)

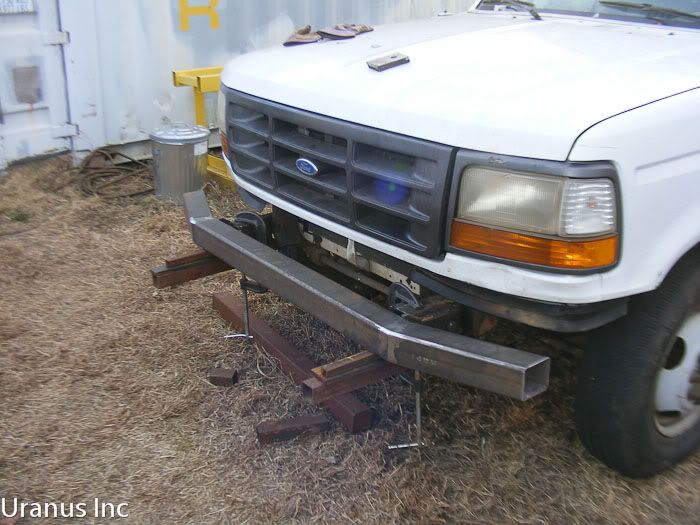

The partially finished bumper was then tacked to the pre-mounted brackets.

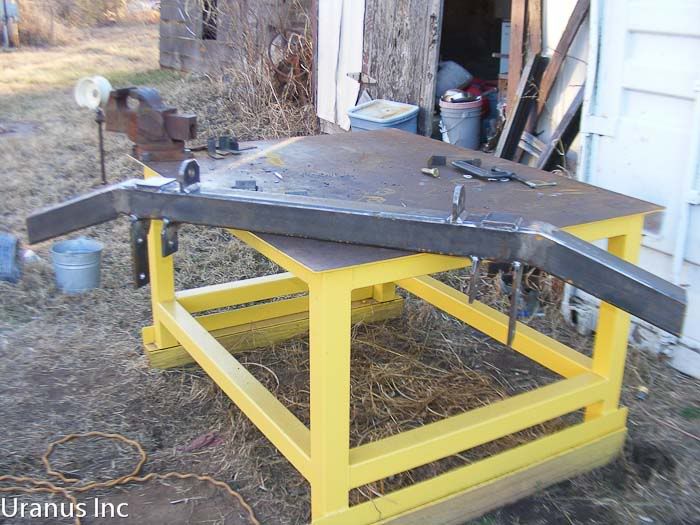

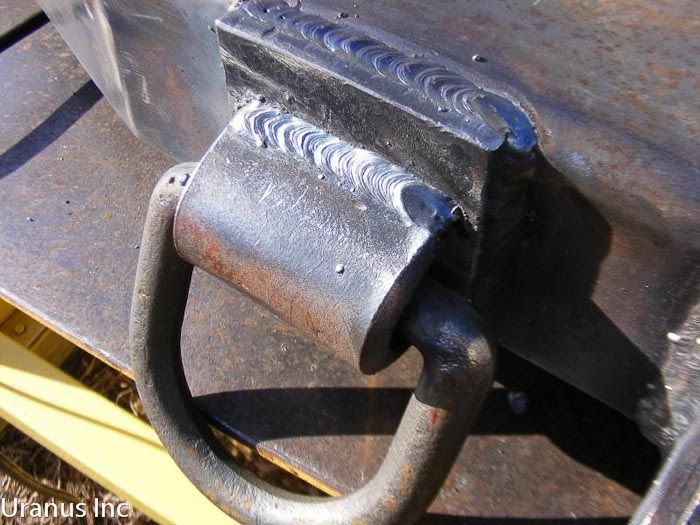

Then removed, and the other stuff was attached off the truck on the table.  Careful attention to welding sequence is needed to insure that heat distortion doesn't affect the final fit.

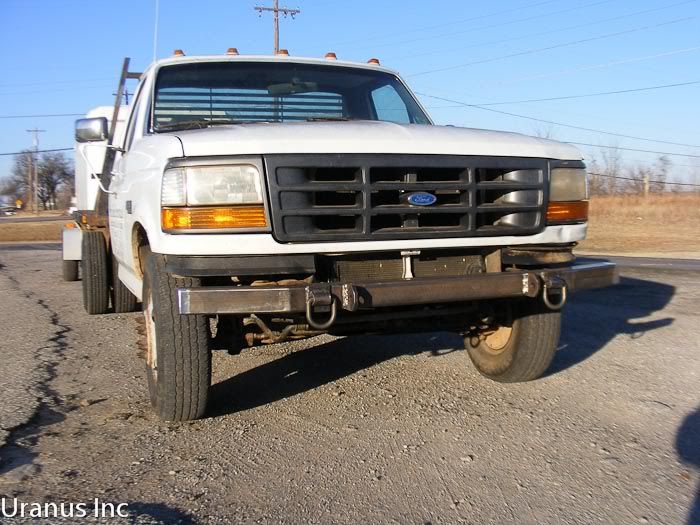

Then it's all put back on the truck, and it fits perfectly.  The truck has front end damage on the left front quarter which messed up the left fender and grille mounts.  You can see the body sets a bit low on the frame on the drivers side.  If I had measured anywhere, or built anywhere other than from the frame, the bumper wouldn't have fit properly.



I suggest the SMAW(stick) process for this kind of work, it's more reliable.  You don't have to worry about adequate penetration as you might using either MIG or Flux Core, both of which require adequate experience to set the welding parameters correctly.  Personally, I prefer stick on anything but thinner materials, and used the process in this instance.

So..........In short, start from your existing mounting holes/brackets on the engine, then build out from there.  It shouldn't be a big deal
kblackav8or
 Posted Tuesday, November 15, 2011 11:12 PM
ATHS Member

ATHS Member - (256,761 reputation)ATHS Member - (256,761 reputation)ATHS Member - (256,761 reputation)ATHS Member - (256,761 reputation)ATHS Member - (256,761 reputation)ATHS Member - (256,761 reputation)ATHS Member - (256,761 reputation)ATHS Member - (256,761 reputation)ATHS Member - (256,761 reputation)

Group: Forum User
Last Active: Friday, July 24, 2020 8:51 PM
Posts: 3,135, Visits: 14,696
Looks like a reel mower for a golf course.

I have seen a stand that used an old trunion mount across the front for small cams but could be swapped for the cradle for big cams.  Seems like as long as you get the materials right for the load it wouldn't be all that hard to make one.  Some appropriate castors could also be an option.  I have an old freight cart I have been using.  I am keeping it.  The 270 is sitting on it now.



dashby
 Posted Tuesday, November 15, 2011 7:06 PM
ATHS Member

ATHS Member - (131,251 reputation)ATHS Member - (131,251 reputation)ATHS Member - (131,251 reputation)ATHS Member - (131,251 reputation)ATHS Member - (131,251 reputation)ATHS Member - (131,251 reputation)ATHS Member - (131,251 reputation)ATHS Member - (131,251 reputation)ATHS Member - (131,251 reputation)

Group: Forum User
Last Active: Wednesday, September 03, 2014 5:46 PM
Posts: 2,066, Visits: 10,664
What is that EATUM-UP device in the back ground?

Dean


Every Body Gotta Be Some Place
EPRSPLIT
 Posted Tuesday, November 15, 2011 6:55 PM
ATHS Member

ATHS Member - (31,306 reputation)ATHS Member - (31,306 reputation)ATHS Member - (31,306 reputation)ATHS Member - (31,306 reputation)ATHS Member - (31,306 reputation)ATHS Member - (31,306 reputation)ATHS Member - (31,306 reputation)ATHS Member - (31,306 reputation)ATHS Member - (31,306 reputation)

Group: Forum User
Last Active: Saturday, September 21, 2019 7:21 PM
Posts: 300, Visits: 4,644
Aaron,

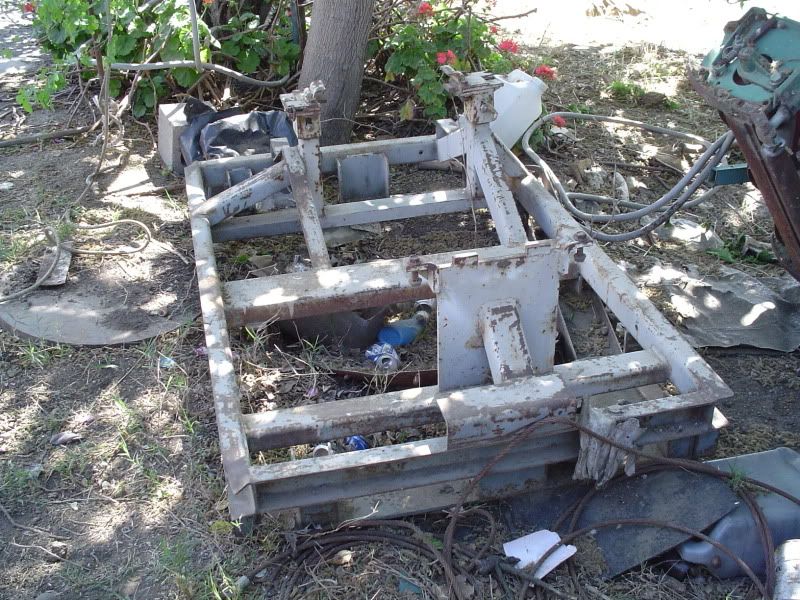

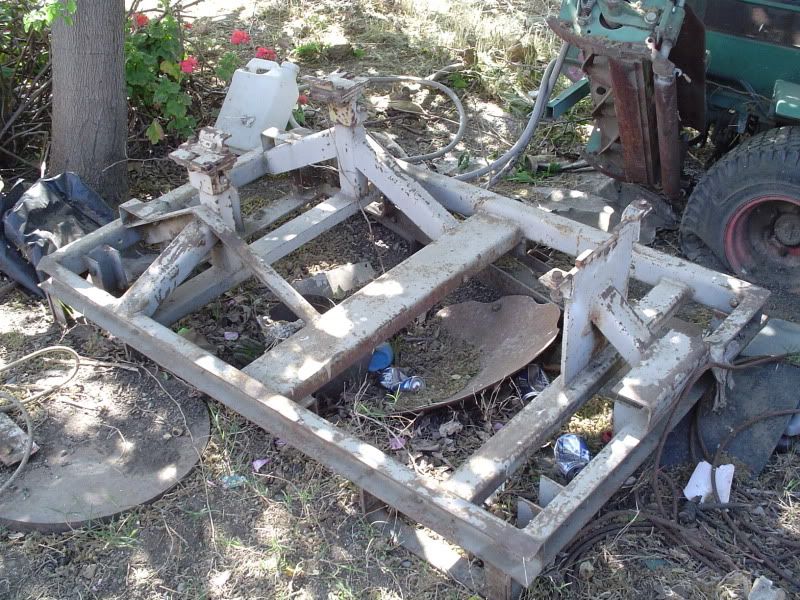

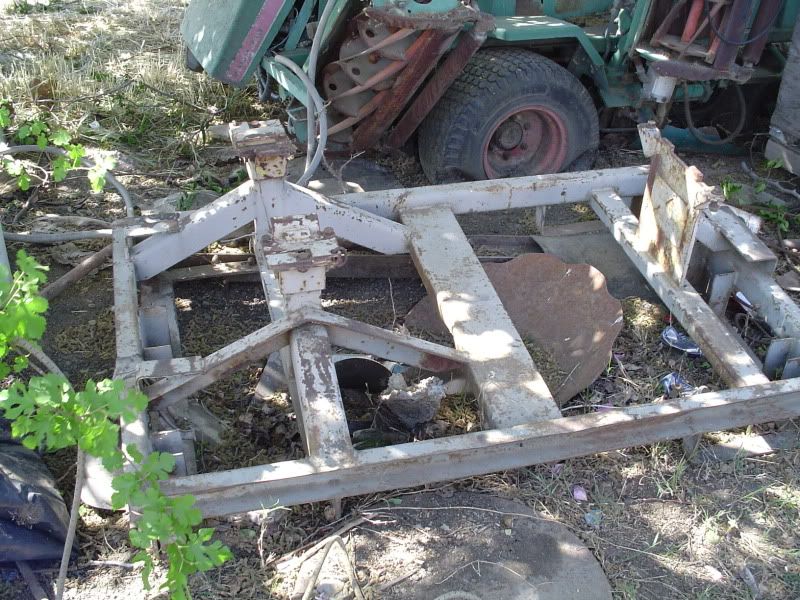

Are you talking about one of these?









1950 Freuhauf 32 ft. flatbed trailer, 1951 White WC22PLT Sleeper
junkmandan
 Posted Tuesday, November 15, 2011 4:46 PM
ATHS Member

ATHS Member - (307,196 reputation)ATHS Member - (307,196 reputation)ATHS Member - (307,196 reputation)ATHS Member - (307,196 reputation)ATHS Member - (307,196 reputation)ATHS Member - (307,196 reputation)ATHS Member - (307,196 reputation)ATHS Member - (307,196 reputation)ATHS Member - (307,196 reputation)

Group: Forum User
Last Active: Saturday, July 04, 2020 4:26 PM
Posts: 3,112, Visits: 8,225
Awful close to 3000 pounds .
ScottM
 Posted Monday, November 14, 2011 7:11 PM
ATHS Member

ATHS Member - (37,331 reputation)ATHS Member - (37,331 reputation)ATHS Member - (37,331 reputation)ATHS Member - (37,331 reputation)ATHS Member - (37,331 reputation)ATHS Member - (37,331 reputation)ATHS Member - (37,331 reputation)ATHS Member - (37,331 reputation)ATHS Member - (37,331 reputation)

Group: Forum User
Last Active: Monday, November 14, 2016 11:13 AM
Posts: 659, Visits: 1,757
What does a fully dressed 400 weigh?

======================================================================================
